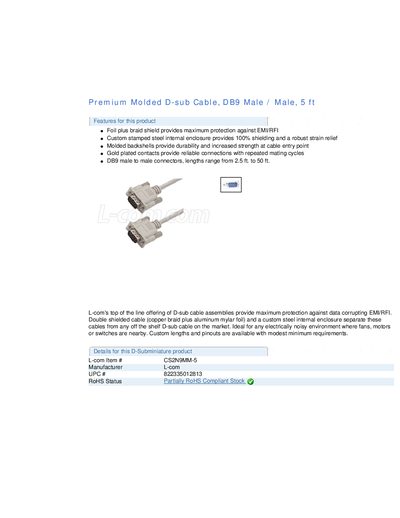

This product is a premium molded D-sub cable that provides maximum protection against EMI/RFI. It features G foil plus braid shield for maximum protection. The custom stamped steel internal enclosure provides 100% shielding and a robust strain relief. Molded backshells provide durability and increased strength at the cable entry point. Gold plated contacts ensure reliable connections with repeated mating cycles. It has DB9 male to male connectors, with lengths ranging from 2.5 ft. to 50 ft.
The CS2N9MM-5 is a premium molded D‑Sub cable featuring a double‑shielded construction (copper braid plus aluminum Mylar foil) and a custom steel internal enclosure for 100 % shielding. Gold‑plated contacts ensure reliable connections over many mating cycles, and the cable includes a robust strain‑relief backshell.
Available in lengths from 2.5 ft to 50 ft, the cable series offers a variety of connector configurations (DB9, DB25, DB37, HD15, etc.) and can be ordered with custom pinouts or lengths. The product is partially RoHS compliant and is suited for electrically noisy environments such as those with fans, motors, or switches.
| Item number | CS2N9MM-5 |
|---|---|
| Connector type | DB9 male to male |
| Shielding | Double shielded (copper braid + aluminum Mylar foil) |
| Contact plating | Gold plated |
| Internal enclosure | Custom stamped steel |
| RoHS status | Partially RoHS compliant |
It uses double shielding with copper braid and aluminum Mylar foil for maximum EMI/RFI protection.
The cable is partially RoHS compliant.
It has DB9 male‑to‑male connectors.
