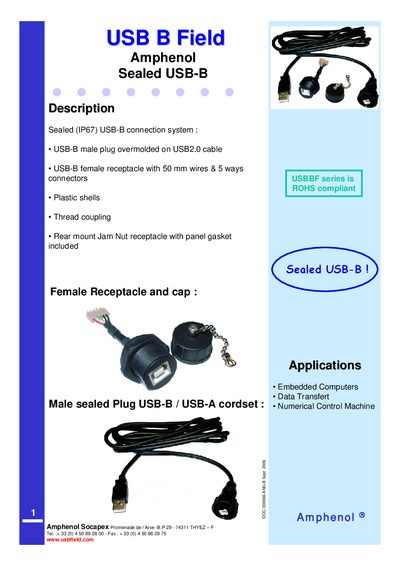

Sealed (IP67) USB-B connection system: USB-B male plug overmolded on USB2.0 cable, USB-B female receptacle with 50 mm wires & 5 ways connectors, Plastic shells, Thread coupling, Rear mount Jam Nut receptacle with panel gasket included
The sealed (IP67) USB‑B connection system features a male plug overmolded on a USB 2.0 cable, a female receptacle with 50 mm wires and five‑way connectors, plastic shells, thread coupling, and a rear‑mount jam‑nut receptacle with a panel gasket. Part numbers for the plug, receptacle, and associated wiring are listed, along with detailed pin assignments and cable dimensions.
The connector is intended for embedded computers and data‑transfer applications. Additional accessories such as a sealed USB‑A plug can be obtained from Amphenol’s USB FTV series. Contact information and the document reference (DOC‑000066‑ANG‑B, Sept 2006) are provided.
| IP Rating | IP67 |
|---|---|
| Male Plug Type | USB‑B male plug overmolded on USB2.0 cable |
| Female Receptacle Wires | 50 mm wires with 5‑way connectors |
| Cable Length | 44.5 mm (1.752 in) |
| Wire Gauge (Red) | AWG 24 |
It is rated IP67.
Embedded computers and data transfer.
By using Amphenol’s USB FTV series.
