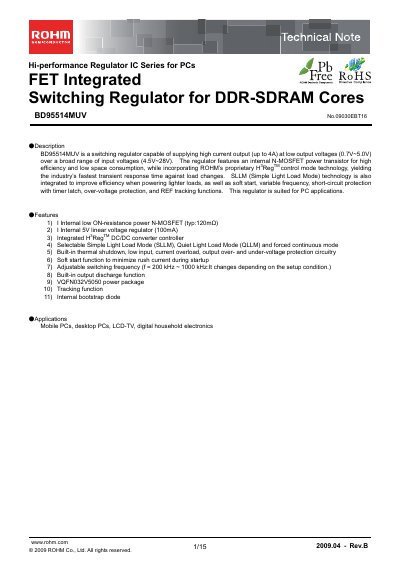

BD95514MUV is a switching regulator capable of supplying high current output (up to 4A) at low output voltages (0.7V~5.0V) over a broad range of input voltages (4.5V~28V). The regulator features an internal N-MOSFET power transistor for high efficiency and low space consumption, while incorporating ROHM’s proprietary H3RegTM control mode technology, yielding the industry’s fastest transient response time against load changes. SLLM (Simple Light Load Mode) technology is also integrated to improve efficiency when powering lighter loads, as well as soft start, variable frequency, short-circuit protection with timer latch, over-voltage protection, and REF tracking functions. This regulator is suited for PC applications.
The BD95514MUV is a high‑performance switching regulator designed for PC and consumer electronics. It delivers up to 4 A output over a wide input range of 4.5 V to 28 V and incorporates ROHM’s H’Reg™ control for fast transient response and light‑load efficiency.
The document details electrical characteristics, pin functions, protection features (thermal shutdown, over‑/under‑voltage, short‑circuit), adjustable switching frequency (200 kHz–1 MHz), and package information (VQFN32). It also includes reference data, block diagrams, and ordering details.
| Maximum Output Current | 4 A |
|---|---|
| Input Voltage Range | 4.5 V ~ 28 V |
| Adjustable Switching Frequency | 200 kHz ~ 1 MHz |
| Internal MOSFET ON‑Resistance | typ 120 mΩ |
| Package | VQFN32 5 × 5 mm (VQFN032V5050) |
| Protection Features | Thermal shutdown, over‑/under‑voltage, short‑circuit, low‑input, current overload |
The regulator can supply up to 4 A of output current.
It operates with an input voltage from 4.5 V to 28 V.
By connecting a resistor to the FS pin, the frequency can be set between 200 kHz and 1 MHz.
It includes thermal shutdown, over‑ and under‑voltage protection, short‑circuit protection, low‑input protection, and current overload protection.
