The document provides product information from ROHM CO., LTD., including specifications and application circuit examples. It also emphasizes the disclaimer of third-party intellectual property rights.

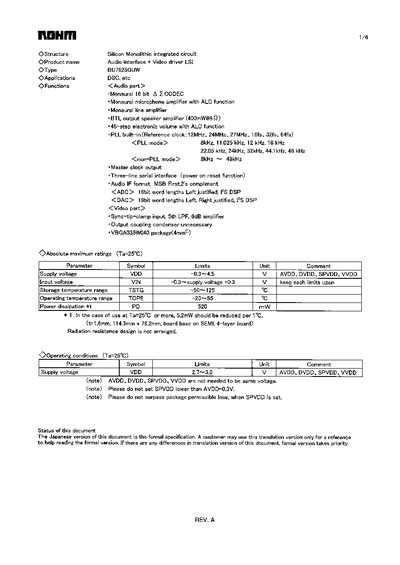

This handbook describes the BU7625GUW monaural 16‑bit audio codec and video driver LSI, including its audio functions such as microphone and line amplification, BTL speaker output (400 mW@8 Ω), 48‑step electronic volume, and built‑in PLL with selectable reference clocks. It also details the video interface, pin assignments, and package information (VBGA035W040, 4 mm).
Technical sections cover absolute maximum ratings, operating conditions, electrical characteristics (supply voltage, current consumption, SNR, THD+N), serial interface protocol, and pin functional descriptions. The document ends with safety notes, application examples, and contact information for ROHM.
| Supply voltage range | -0.3 V to 45 V |
|---|---|
| Storage temperature range | -? °C to 125 °C |
| Operating temperature range | -20 °C to 85 °C |
| Power dissipation | 520 mW |
| Audio output power | 400 mW @ 8 Ω |
| PLL reference clocks | 12 MHz, 24 MHz, 27 MHz |
| Input impedance | 65 kΩ to 125 kΩ |
| Signal‑to‑noise ratio (typ.) | 66 dB |
The device can be powered with a supply voltage from –0.3 V up to 45 V.
The BU7625GUW operates safely between –20 °C and 85 °C.
It provides a BTL speaker output of 400 mW into an 8 Ω load.
The IC is supplied in a VBGA035W040 package measuring 4 mm.
