This document is a technical guide for ROHM's products. Please contact ROHM for more details.

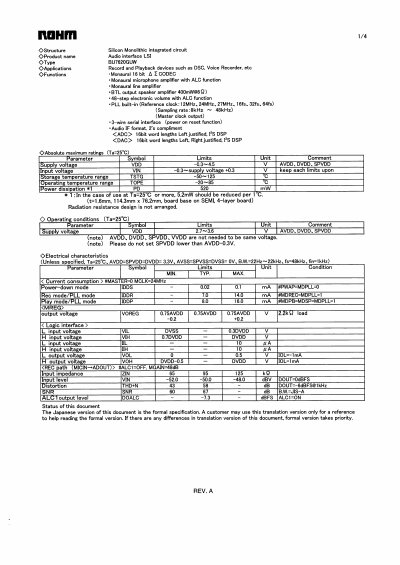

The BU7620GUW is a monaural 16‑bit audio codec LSI featuring a microphone amplifier with ALC, a line amplifier, a BTL speaker amplifier (400 mW @ 8 Ω), 48‑step electronic volume, and a built‑in PLL supporting multiple reference clocks. It is intended for record and playback devices such as digital voice recorders.
The document lists absolute maximum ratings, operating conditions, detailed electrical characteristics, a full register map, and pin‑out descriptions. It also includes cautions for over‑temperature, over‑voltage, and electromagnetic interference, as well as application notes for circuit design.
| Supply voltage (VDD) | 2.3‑4.5 V |
|---|---|
| Input voltage (VIN) | -0.3 V to 10.3 V |
| Operating temperature range | -20 °C to 85 °C |
| Sampling rate | 8 kHz – 48 kHz |
| BTL speaker output power | 400 mW @ 8 Ω |
| Electronic volume steps | 48 steps with ALC |
| Serial interface | 3‑wire (CSB, SCLK, SDATA) |
The device operates with a supply voltage (VDD) of 2.3 V to 4.5 V.
The BTL output speaker amplifier can deliver up to 400 mW into an 8 Ω load.
The codec supports sampling rates from 8 kHz up to 48 kHz.
The device uses a 3‑wire serial interface consisting of CSB, SCLK, and SDATA pins.
