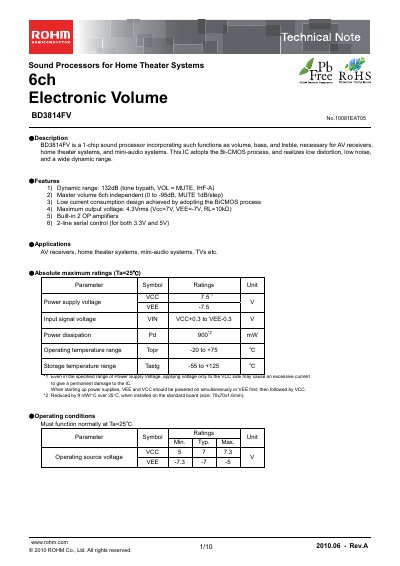

BD3814FV is a one-chip sound processor that integrates functions such as volume, bass, and treble, necessary for AV receivers, home theater systems, and mini-audio systems.
The BD3814FV is a single‑chip sound processor that integrates volume, bass, and treble functions for AV receivers, home‑theater systems, and mini‑audio devices. It uses a Bi‑CMOS process to achieve low distortion, low noise, and a wide dynamic range.
The document lists detailed electrical characteristics, timing requirements, control data formats, and example application circuits, along with ordering information and safety notes for designers.
| Dynamic range | 132 dB |
|---|---|
| Maximum output voltage | 4.3 Vrms (Vcc=7V, VEE=-7V, RL=10kΩ) |
| Master volume range | 0 to -95 dB per channel |
| Operating temperature range | -20 °C to +75 °C |
| Storage temperature range | -55 °C to +125 °C |
| Input impedance | 14–26 kΩ |
The maximum output voltage is 4.3 Vrms when VCC=7 V, VEE=‑7 V, and the load is 10 kΩ.
VEE and VCC should be powered on simultaneously, or VEE first followed by VCC; powering VCC first can cause excessive current.
The device provides a dynamic range of 132 dB.
The recommended operating temperature range is –20 °C to +75 °C.
