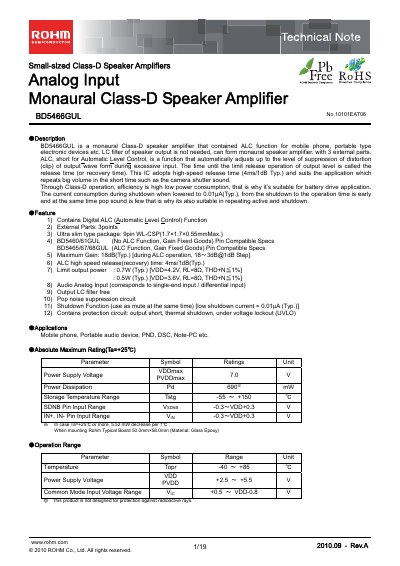

BD5466GUL is a single-channel Class-D speaker amplifier with ALC function for mobile phones, portable electronic devices, etc.
The BD5466GUL is a monaural Class‑D speaker amplifier featuring a built‑in Automatic Level Control (ALC) function, ultra‑slim 9‑pin WL‑CSP package, and no external LC filter required. It is intended for battery‑driven devices such as mobile phones, portable audio equipment, and digital cameras, offering high efficiency and low pop‑noise during shutdown.
The document provides detailed electrical characteristics, pin descriptions, external dimensions, typical application circuits, and ordering information. Key specifications include a typical maximum gain of 18 dB, a fast ALC release time of 4 ms/1 dB, and a shutdown current of 0.01 HA. Operating temperature ranges from –40 °C to +85 °C and supply voltage from 3.6 V to 5.5 V are also listed.
| Maximum Gain | 18 dB (Typ.) |
|---|---|
| Shutdown Current | 0.01 HA (Typ.) |
| Supply Voltage (Absolute Max) | 7.0 V (typ.) |
| Operating Temperature Range | -40 °C to +85 °C |
The typical maximum gain is 18 dB.
The shutdown (mute) current is 0.01 HA typical.
The device operates with a typical supply voltage of 7.0 V and a normal operating range of 3.6 V to 5.5 V.
