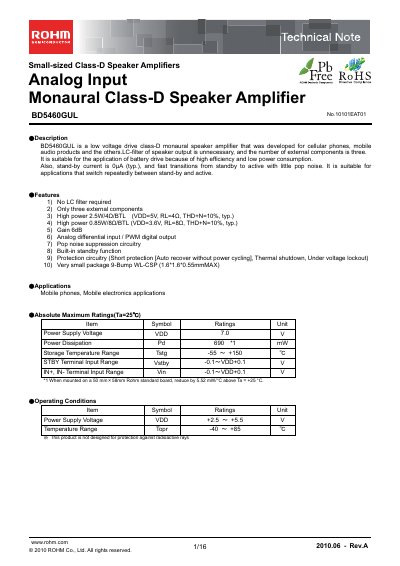

BD5460GUL is a low voltage drive class-D monaural speaker amplifier that was developed for cellular phones, mobile audio products and the others. LC-filter of speaker output is unnecessary, and the number of external components is three. It is suitable for the application of battery drive because of high efficiency and low power consumption. Also, stand-by current is 0µA (typ.), and fast transitions from standby to active with little pop noise. It is suitable for applications that switch repeatedly between stand-by and active.
The BD5460GUL is a low‑voltage, monaural Class‑D speaker amplifier designed for mobile phones and other battery‑driven audio products. It operates without an external LC filter, requiring only three external components, and offers high efficiency with a typical standby current of a few microamps.
The document provides absolute maximum ratings, operating conditions, electrical characteristics, package outlines, pin assignments, evaluation board schematics, parts list, and ordering information, making it a complete reference for designers integrating the device into audio circuits.
| Maximum Supply Voltage (VDD) | 7.0 V |
|---|---|
| Power Dissipation | 690 mW |
| Storage Temperature Range | -55 °C to +150 °C |
| Operating Supply Voltage (VDD) | 42.5 V to 45.5 V |
| Typical Output Power (BTL, 8 Ω, 3.6 V) | 0.45 W to 0.68 W |
| Typical Voltage Gain (BTL) | 5.4 dB to 6.4 dB |
| Power Supply Rejection Ratio (PSRR) | 45 dB to 53 dB |
| Switching Frequency | 175 kHz to 325 kHz |
| Start‑up Time | 0.39 ms to 0.73 ms |
| Standby Input Voltage Range | -0.1 V to VDD+0.1 V |
The absolute maximum supply voltage (VDD) is 7.0 V.
Only three external components are needed.
Typical output power ranges from 0.45 W to 0.68 W (BTL, 8 Ω).
The switching frequency can be set between 175 kHz and 325 kHz.
