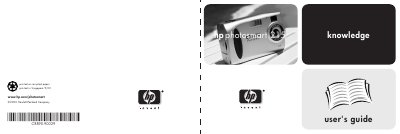

This document is the user guide of HP PhotoSmart 215 digital camera, which introduces the camera's usage methods, setting methods and photo taking techniques.
The HP PhotoSmart 215 user manual guides you through getting started with the camera, including quick setup, battery installation, and language selection. It also covers basic operation such as taking photos, reviewing images, and using the built‑in flash.
Additional sections detail memory‑card handling, power options, maintenance, troubleshooting, and regulatory information. Appendices provide reference menus and warranty details. This manual is written in Chinese.
| Resolution | 1.3 MegaPixel (1200×1600, 640×480) |
|---|---|
| Memory Card | CompactFlash Type 1 (all sizes supported) |
| Lens System | f/2.8, 6.68 mm (43.4 mm equivalent) |
| Zoom | 2× digital zoom |
| Aperture | f/2.8‑f/8 |
| Shutter Speed | 1/750 to 1/3 seconds |
| Focus Range | Normal: 2 ft to ∞, Macro: 4 in to 3 ft |
| ISO Sensitivity | ISO 100 |
| Self‑Timer | 10 second delay |
| Flash | Built‑in, 2‑8 ft range |
| LCD | 1.8‑inch color LCD, 61,600 pixels |
| Power | 4 AA batteries (included) or optional AC adapter |
| Interfaces | USB to PC, standard tripod mount |
When the camera is turned on for the first time, the Language menu appears; use the menu dial to select a language and press the dial to confirm.
It uses a CompactFlash Type 1 memory card; any storage size is supported.
The camera requires four AA batteries, which are supplied with the unit.
