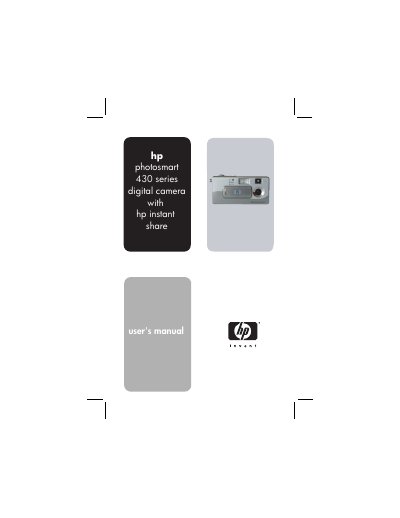

This document is the user manual for the HP Photosmart 430 series digital camera with HP Instant Share. It provides instructions on how to use the camera and describes its features and characteristics. The document includes information on camera parts, setup, battery and memory card installation, power on/off, and initial settings such as language, date, and time.
This manual guides you through getting started with the HP Photosmart 430 series camera, including camera parts, battery and memory‑card installation, power‑on procedures, language selection, date and time settings, and software installation for Windows and Macintosh.
It also covers how to capture still pictures and video clips, use live view, digital zoom, flash, and advanced settings, as well as HP Instant Share features for printing and emailing images, connecting to a TV, and troubleshooting common issues. This manual is written in Chinese.
| Still picture resolution | 3.27 MP (2096 × 1560) total pixel count |
|---|---|
| Video resolution | 1/4 VGA (320 × 240) |
| Sensor diagonal | 6.73 mm (1/2.7‑inch) |
| Color depth | 30‑bit (10 bits per color) |
| Internal storage | 16 MB flash memory |
| Supported memory cards | Secure Digital (SD) or MultiMediaCard (MMC) |
| Lens focal length | 5.67 mm (≈36 mm equivalent) |
| Aperture (F‑Number) | f/4.0 and f/8.0 |
| Digital zoom | Up to 3× (HP 433) or 5× (HP 435) |
| Maximum power consumption | 2.64 W (800 mA @ 3.3 VDC) |
| Battery type | 2 AA batteries (non‑rechargeable or NiMH) |
The camera uses two AA batteries, which can be non‑rechargeable or NiMH.
It supports Secure Digital (SD) or MultiMediaCard (MMC) memory cards.
Use the optional audio/video cable connected to the TV connector on the camera.
The camera consumes up to 2.64 watts (800 mA at 3.3 V).
