This document is about ROHM SSOP-B16 package design support document, which introduces external package and internal structure.

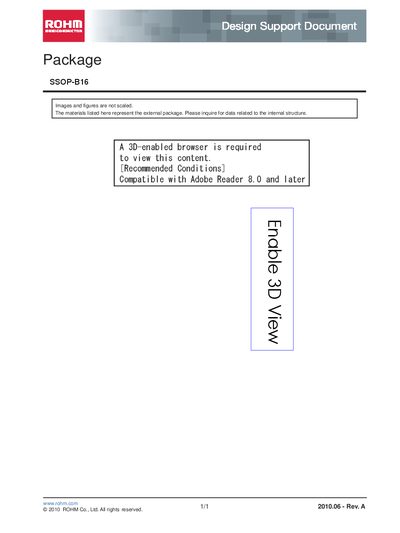

This design support document describes the external SSOP‑B16 semiconductor package. It includes a 3‑D view of the package and notes that a 3D‑enabled browser is required to view the content. The document also lists the recommended condition of using Adobe Reader 8.0 or later.
The document contains important usage notes, stating that the package is not intended for radiation‑tolerant or safety‑critical applications and that copying or reproduction is prohibited without ROHM's consent. It also advises designers to consider safety measures such as derating and redundancy when integrating the product.
| Package type | SSOP-B16 |
|---|---|
| Publication year | 2010 |
No, the document states the products are not designed to be radiation tolerant.
A 3D‑enabled browser and Adobe Reader 8.0 or later are required.
No, copying or reproduction is prohibited without ROHM's consent.
