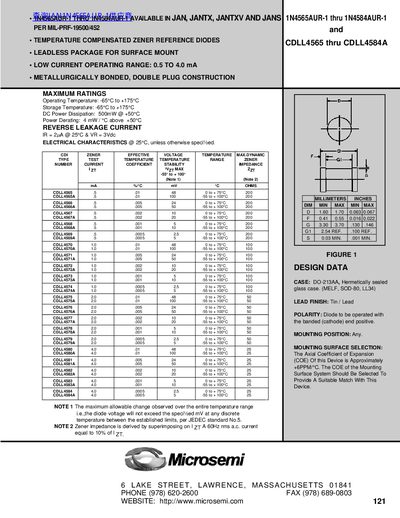

1N4565AUR-1 is a temperature compensated Zener reference diode, leadless package for surface mount, low current operating range 0.5 to 4.0 mA, metallurgially bonded, double plug construction
The Microsemi Zener reference diode family provides temperature‑compensated voltage references with low current operation (0.5 to 4.0 mA) and a metallurgically bonded, double‑plug construction. The parts are offered in leadless surface‑mount packages such as DO‑213AA, MELF, SOD‑80, and LL34.
Maximum ratings include an operating temperature range of –65 °C to +175 °C, a storage range of the same limits, 500 mW power dissipation at +50 °C, and a power derating of 4 mW/°C above +50 °C. Electrical characteristics list a reverse leakage current of 2 µA at 25 °C with 3 V reverse bias and detailed Zener impedance versus operating current curves.
| Operating Temperature | -65 °C to +175 °C |
|---|---|
| Storage Temperature | -65 °C to +175 °C |
| DC Power Dissipation | 500 mW @ +50 °C |
| Power Derating | 4 mW/°C above +50 °C |
| Reverse Leakage Current (IR) | 2 µA @ 25 °C |
The diodes operate from –65 °C to +175 °C.
The reverse leakage current is 2 µA at 25 °C with a 3 V reverse bias.
It can dissipate up to 500 mW at +50 °C.
Power derates at 4 mW per degree Celsius above +50 °C.
