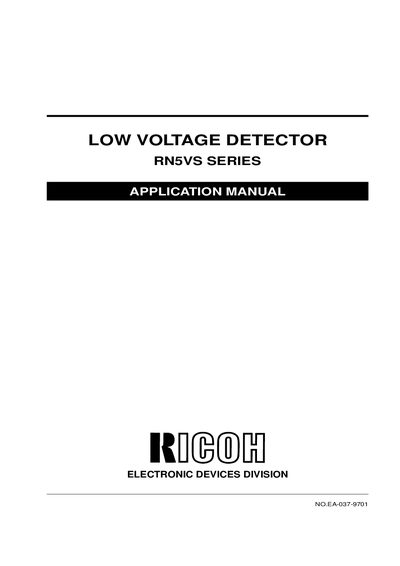

This file is an application manual for the Ricoh RN5VS series of low-voltage detectors. These products are intended for use as general electronic components in standard applications (office equipment, computer equipment, measuring instruments, consumer electronic products, amusement equipment, etc.).
The RN5VS Series are CMOS process voltage detector ICs designed with high threshold accuracy and ultra-low supply current. They operate at extremely low voltages (0.7V to 10.0V) and feature a fixed detector threshold with high accuracy, making them suitable for system reset and battery monitoring applications.
The device operates with a supply voltage ranging from 0.7V to 10.0V.
The typical supply current is 0.8nA when the voltage is 1.5V.
