AS-M15TA-R/AS-M15TB-R/AS-M15SA-R/AS-M15KA-R are magnetic switches with a flat structure and small size. They have low power consumption, high sensitivity, and wide operating temperature range.

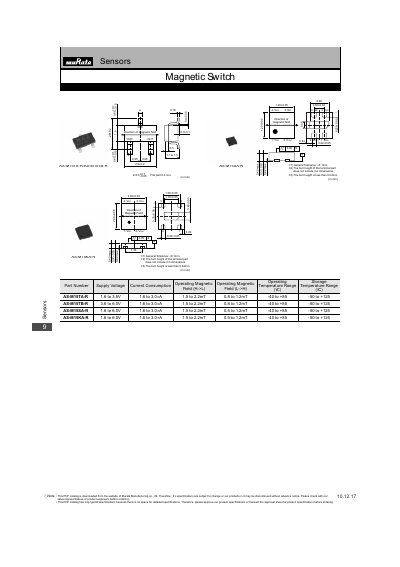

This Murata datasheet provides the key electrical and mechanical specifications for the AS-M15 series magnetic switches (models TA‑R, TB‑R, SA‑R, KA‑R). The document lists dimensions, pin assignments and typical performance parameters such as supply voltage, current draw, operating magnetic field and temperature limits.
The data are intended for designers and engineers selecting the appropriate magnetic switch for their applications. All values are typical specifications; actual performance may vary and should be verified with the manufacturer before final design decisions.
| AS-M15TA-R Supply Voltage | 1.6 to 3.5 V |
|---|---|
| AS-M15TB-R Supply Voltage | 3.6 to 6.0 V |
| AS-M15SA-R Supply Voltage | 1.6 to 6.0 V |
| AS-M15KA-R Supply Voltage | 1.6 to 6.0 V |
The AS-M15TA-R operates from 1.6 V to 3.5 V.
All AS-M15 series switches are rated for –40 °C to +85 °C operating temperature.
The high‑to‑low operating magnetic field is 1.5 mT to 2.2 mT for all listed models.
