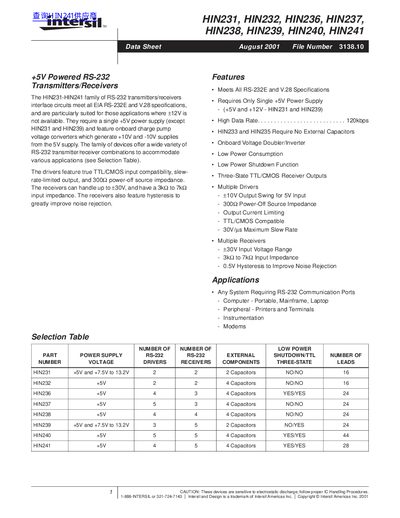

HIN231, HIN232, HIN236, HIN237, HIN238, HIN239, HIN240, HIN241 are a family of +5V powered RS-232 transmitters/receivers. They meet all EIA RS-232E and V.28 specifications and are particularly suited for applications where ±12V is not available. These devices require only a single +5V power supply and feature onboard charge pump voltage converters that generate +10V and -10V supplies from the 5V supply. The family of devices offer a wide variety of RS-232 transmitter/receiver combinations to accommodate various applications.
The HIN231‑HIN241 family of RS‑232 transmitters/receivers are powered by a single +5 V supply (except HIN231 and HIN239, which also require +7.5 V to +13.2 V). They meet all EIA RS‑232E and V.28 specifications, feature onboard charge‑pump voltage converters that generate ±10 V supplies, and offer a variety of driver/receiver combinations.
The document provides detailed pin descriptions, pinout diagrams for each package type, absolute maximum ratings, electrical specifications, timing characteristics, and ordering information. Mechanical dimensions for the various plastic packages are also included.
