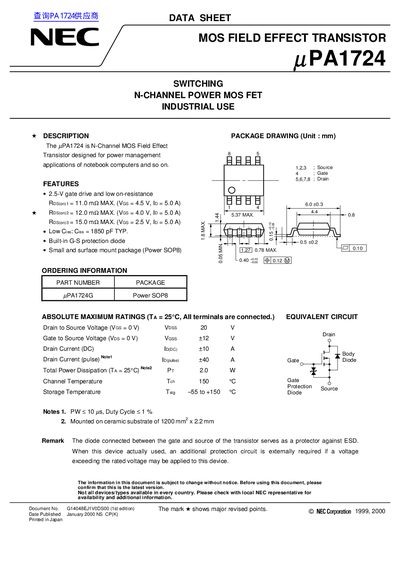

The µPA1724 is an N-Channel MOS Field Effect Transistor designed for power management applications of notebook computers and so on.
The NEC uPA1724 is an N‑channel power MOSFET designed for industrial power‑management applications. It is offered in a small surface‑mount Power SOP8 package (HPA1724G) and features a low gate‑drive voltage and built‑in G‑S protection diode.
The document provides absolute maximum ratings, typical electrical parameters such as on‑state resistance, capacitances, and switching times, as well as safe operating area and derating curves for reliable design use.
| Drain‑to‑Source Voltage (VDS) Max | 20 V |
|---|---|
| Gate‑to‑Source Voltage (VGS) Max | 12 V |
| Continuous Drain Current (ID) Max | 10 A |
| Pulse Drain Current (ID) Max | 40 A |
| Input Capacitance (Ciss) | 1850 pF |
| Output Capacitance (Coss) | 610 pF |
| Reverse Transfer Capacitance (Crss) | 320 pF |
| Body Diode Forward Voltage (VF) | 0.78 V |
The device can withstand up to 20 V between drain and source.
It is supplied in a Power SOP8 package, part number HPA1724G.
The MOSFET operates with a 2.5‑V gate drive and low on‑resistance.
