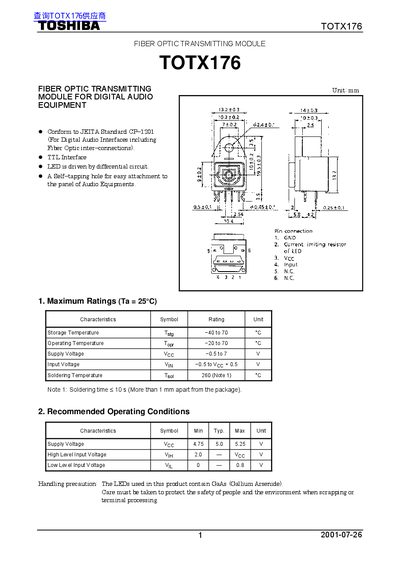

TOTX176 is a fiber optic transmitting module that conforms to the JEITA Standard CP-1201 for digital audio interfaces, including fiber optic interconnects. It supports TTL interface and driven by differential circuit. It also has a self-tapping hole for easy attachment to the panel of Audio Equipments.
This manual describes the electrical and optical characteristics of the TOTX176 fiber optic transmitting module, including data rate, supply voltage, temperature ranges and optical output specifications. It also provides recommended operating conditions and maximum ratings for safe use.
The document includes application circuit diagrams, mounting instructions, soldering guidelines, and safety precautions such as waste handling, vibration resistance, and restrictions on product use. It is intended for designers and integrators of digital audio equipment and other electronic systems.
The recommended supply voltage is 4.75 V to 5.25 V, with a typical value of 5.0 V.
Solder at 260 °C or less and keep the soldering time to ten seconds or less.
When discarding the device, follow procedures stipulated by local regulations to protect the environment.
