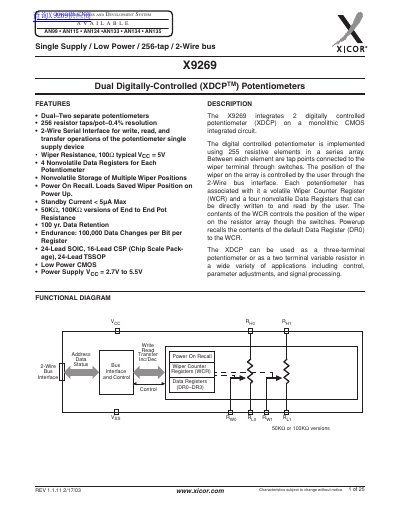

The X9269 is a digitally controlled potentiometer product launched by Xicor. It has dual channels, 256 resistor taps, 0.4% resolution, 2-wire serial interface, low power consumption and other features.
The X9269 integrates two digitally‑controlled potentiometers on a single CMOS IC, offering 256 resistor taps per pot and a 0.4 % resolution. It communicates via a 2‑wire serial bus that supports read, write, and transfer operations, and includes non‑volatile data registers for storing wiper positions.
Key features include a standby current below 5 µA, supply voltage range of 2.7 V to 5.5 V, and packaging options such as 24‑lead SOIC, 16‑lead CSP, and 24‑lead TSSOP. The device is suited for applications like gain control, voltage reference programming, audio volume adjustment, and sensor conditioning.
| Resistor taps per potentiometer | 256 |
|---|---|
| Wiper resistance | 100 Ω typical |
| Standby current | < 5 µA |
| Supply voltage range | 2.7 V to 5.5 V |
| End‑to‑end resistance options | 50 kΩ, 100 kΩ |
| Data retention | 100 years |
| Endurance (data changes per bit) | 100,000 per register |
| Package types | 24‑lead SOIC, 16‑lead CSP, 24‑lead TSSOP |
The X9269 operates from 2.7 V to 5.5 V.
Each potentiometer provides 256 taps with 0.4 % resolution.
Standby current is less than 5 µA.
It is offered in 24‑lead SOIC, 16‑lead CSP, and 24‑lead TSSOP packages.
