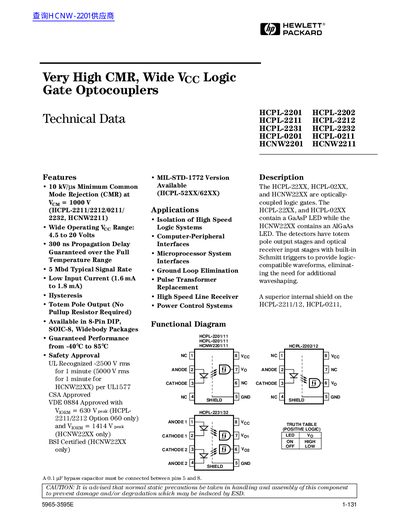

This datasheet describes the features and functions of the HCPL-22XX, HCPL-02XX, and HCNW22XX series of optically coupled logic gates. These products feature a high common mode rejection ratio and operate over a wide voltage range of 4.5 to 20 volts.
This handbook provides technical data, features, and application information for HP's HCPL‑22XX, HCPL‑02XX and HCNW22XX optically‑coupled logic gates. It includes functional diagrams, truth tables, selection guides, package drawings and regulatory approvals.
The document also details electrical characteristics such as common‑mode rejection, propagation delay, input current and operating voltage range, as well as safety certifications (UL, CSA, VDE, BSI) and recommended circuit examples.
| Minimum Common Mode Rejection (CMR) | 10 kV/µs at VOM = 1000 V |
|---|---|
| Operating Voltage (Voc) Range | 4.5 V to 20 V |
| Propagation Delay | 300 ns (typical) |
| Typical Signal Rate | 5 Mbd |
| Input Current | 1.6 mA to 1.8 mA |
| Operating Temperature Range | -40 °C to 85 °C |
| UL Recognition | 2500 V rms for 1 min (5000 V rms for 1 min for HCNW22XX) |
| Package Options | 8‑Pin DIP, SOIC‑8, Widebody |
| VDE 0884 Option 060 Isolation Voltage | 630 V peak |
The typical propagation delay is 300 ns, guaranteed over the full temperature range.
They operate from 4.5 V up to 20 V.
They are offered in 8‑Pin DIP, SOIC‑8 and Widebody packages.
