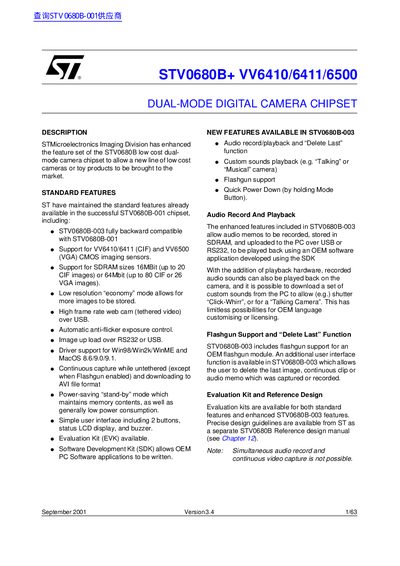

STV0680B+ VV6410/6411/6500 DUAL-MODE DIGITAL CAMERA CHIPSET is a low cost dual-mode camera chipset released by STMicroelectronics Imaging Division company. It has the same features as STV0680B-001 chip, and also includes low resolution 'economy' mode, high frame rate web cam (tethered video) and more.
The STV0680B+ is a low‑cost dual‑mode digital camera chipset designed for CIF and VGA resolution sensors. It supports a range of CMOS imaging sensors, offers flexible SDRAM options, and includes both basic and enhanced functions such as audio recording, flashgun control, and custom sound playback.
The document provides detailed specifications, pin‑out information, package dimensions, evaluation kit details, and contact information for technical support. It is intended for OEMs developing still‑image or toy camera products that require a simple, cost‑effective imaging solution.
| Supported image sensors | VV6410/6411 (CIF) and VV6500 (VGA) CMOS sensors |
|---|---|
| Supported SDRAM sizes | 16 Mbit or 64 Mbit |
| Low‑resolution economy mode | Increases image storage capacity |
| USB video capability | High frame‑rate webcam (tethered video) over USB |
| Audio functions (STV0680B‑003) | Audio record/playback and custom sound playback |
| Flashgun support (STV0680B‑003) | Enabled via two‑wire interface |
| Power‑saving mode | Stand‑by mode maintains memory contents |
| User interface | 2 buttons, status LCD display, buzzer |
The chipset supports VV6410/6411 (CIF) and VV6500 (VGA) CMOS imaging sensors.
It can use either 16 Mbit or 64 Mbit SDRAM, providing different image storage capacities.
Yes, the STV0680B‑003 version adds audio record and playback functions.
Flashgun support is included in the STV0680B‑003 revision.
