MAX4754/MAX4755/MAX4756 are low on-resistance analog switches that can be used to switch audio or data signals. They operate from a single +1.8V to +5.5V power supply and feature low RON (0.5Ω) audio switches capable of handling full swing signals.

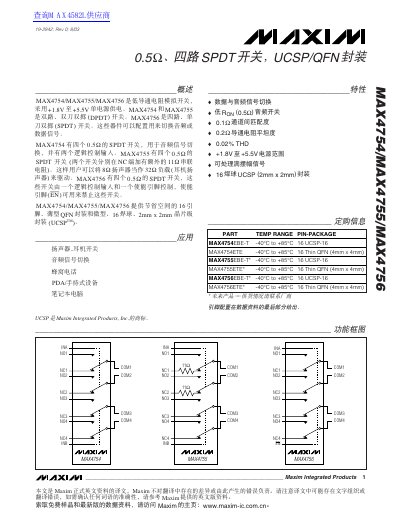

The Maxim MAX4754, MAX4755 and MAX4756 are 0.5 Ω SPDT/DPDT analog switches designed for PDA and mobile devices. The document provides detailed electrical characteristics, absolute maximum ratings, and package outlines for the UCSP and thin QFN versions.
Key performance data include supply voltage range, on‑resistance, turn‑on/off times, off‑isolation, and total harmonic distortion. Pin configurations and mechanical dimensions are also listed for board designers. This manual is written in Chinese.
| Operating Temperature Range | -40°C to +85°C |
|---|
They are rated for operation from –40 °C to +85 °C.
