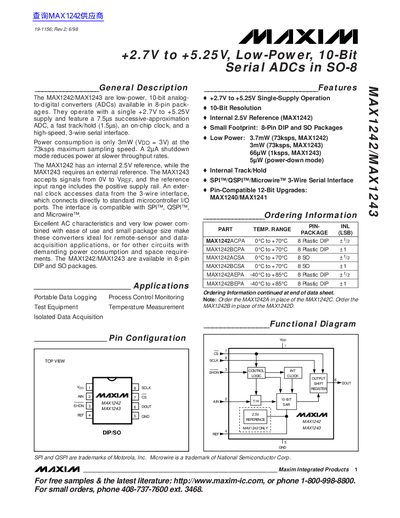

The MAX1242/MAX1243 are low-power, 10-bit analog-to-digital converters (ADCs) available in 8-pin pack- ages. They operate with a single +2.7V to +5.25V supply and feature a 7.5µs successive-approximation ADC, a fast track/hold (1.5µs), an on-chip clock, and a high-speed, 3-wire serial interface. Power consumption is only 3mW (VDD = 3V) at the 73ksps maximum sampling speed. A 2µA shutdown mode reduces power at slower throughput rates. The MAX1242 has an internal 2.5V reference, while the MAX1243 requires an external reference. The MAX1243 accepts signals from 0V to VREF, and the reference input range includes the positive supply rail. An exter- nal clock accesses data from the 3-wire interface, which connects directly to standard microcontroller I/O ports. The interface is compatible with SPI™, QSPI™, and Microwire™. Excellent AC characteristics and very low power com- bined with ease of use and small package size make these converters ideal for remote-sensor and data- acquisition applications, or for other circuits with demanding power consumption and space require- ments. The MAX1242/MAX1243 are available in 8-pin DIP and SO packages. Applications Portable Data Logging Process Control Monitoring Test Equipment Temperature Measurement Isolated Data Acquisition
The MAX1242 and MAX1243 are low‑power, 10‑bit analog‑to‑digital converters available in 8‑pin DIP and SO packages. They operate from a single +2.7 V to +5.25 V supply and feature a 7.5 µs successive‑approximation conversion, a fast 1.5 µs track/hold, and a 3‑wire serial interface compatible with SPI, QSPI, and Microwire.
These devices include an internal 2.5 V reference (MAX1242) or accept an external reference (MAX1243). They offer low power consumption (3.7 mW for MAX1242 at 73 ksps) and shutdown capability that reduces current to below 10 µA. Ordering information, pin descriptions, timing diagrams, and layout recommendations are provided.
| Supply Voltage | +2.7 V to +5.25 V |
|---|---|
| Resolution | 10 Bits |
| Maximum Sampling Rate | 73 ksps |
| Power Consumption (MAX1242) | 3.7 mW at 73 ksps |
The devices operate from +2.7 V to +5.25 V.
The conversion time is 5.5 µs.
Both devices are available in 8‑pin DIP and SO packages.
