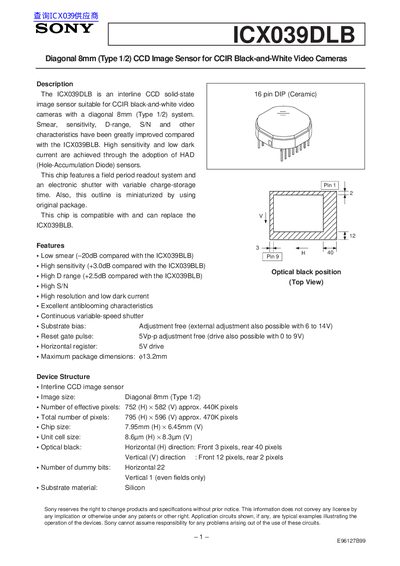

The ICX039DLB is a diagonal 8mm (Type 1/2) CCD image sensor suitable for CCIR black-and-white video cameras. It offers improved characteristics compared to the ICX039BLB, including low smear, high sensitivity, high dynamic range, high signal-to-noise ratio, and low dark current. The adoption of HAD sensors enables high sensitivity and low dark current. The chip features a field period readout system and an electronic shutter with variable charge-storage time. The original package design allows for miniaturization. The ICX039DLB is compatible with and can replace the ICX039BLB.
The Sony ICX039DLB is an interline CCD image sensor in a 16‑pin DIP package, designed for CCIR black‑and‑white video cameras with a diagonal of 8 mm (Type 1/2). It offers low smear, high sensitivity, high D‑range, and a high signal‑to‑noise ratio, using a Hole‑Accumulation Diode (HAD) structure.
The datasheet provides detailed electrical characteristics, pin definitions, bias and clock conditions, as well as handling and soldering recommendations to protect the sensor from static discharge and thermal damage.
| Diagonal | 8 mm (Type 1/2) |
|---|---|
| Effective pixels | 752 × 582 ≈ 440 K |
| Total pixels | 795 × 596 ≈ 470 K |
| Chip size | 7.95 mm × 6.45 mm |
| Substrate material | Silicon |
Do not exceed a package temperature of 80 °C when soldering.
The sensor operates from –10 °C to +60 °C.
