This document describes the applications, external dimensions, voltage regulation, and power dissipation characteristics of the PTZ36B diode.

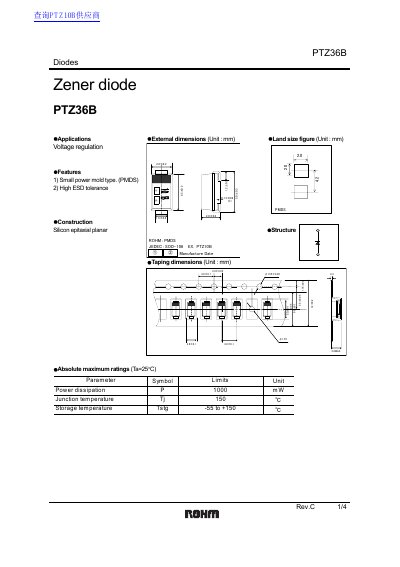

This datasheet describes the PTZ36B series Zener diodes from ROHM, intended for voltage regulation in a variety of electronic equipment such as audio‑visual, office‑automation, and communication devices. It includes detailed electrical characteristics, maximum ratings, and package dimensions.
Key specifications such as typical Zener voltage, reverse voltage rating, ESD tolerance, and package size are presented along with characteristic curves and application notes to aid designers in selecting and implementing the component.
| Typical Zener voltage (Vz) | 36.0 V |
|---|---|
| Maximum reverse voltage (VR) | 40 V |
| Package dimensions (L × W) | 4.0 mm × 2.9 mm |
| ESD breakdown voltage | 30 kV |
The typical Zener voltage is 36.0 V.
The maximum reverse voltage rating is 40 V.
It can withstand an ESD voltage of up to 30 kV.
The package measures approximately 4.0 mm by 2.9 mm.
