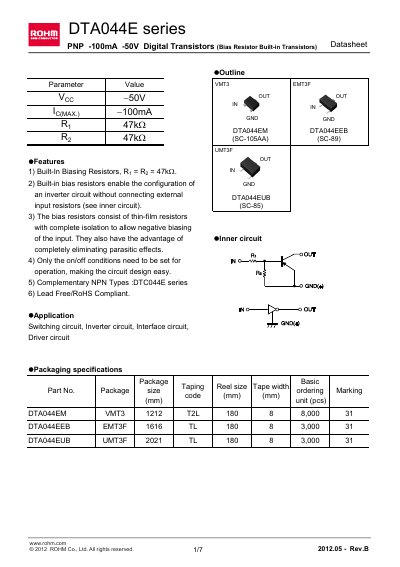

DTA044E series is a PNP digital transistor from ROHM. It has a rated current of -100mA and a rated voltage of -50V. It has built-in bias resistors, so no external input resistors are required to form an inverter circuit. It is suitable for switching circuits, inverter circuits, interface circuits, and driver circuits
The DTA044EUB is a PNP digital transistor from ROHM that includes built‑in 47 kΩ bias resistors, enabling simple inverter or switching circuit designs without external resistors. It is RoHS‑compliant and offered in surface‑mount packages.
Key specifications include a supply voltage rating of –50 V, input voltage range –40 V to +10 V, maximum collector current of –100 mA, power dissipation of 200 mW, and a transition frequency of 250 MHz. Package dimensions and terminal layouts for the TL‑180 package are detailed, along with absolute maximum ratings and typical application circuits.
| Supply voltage (VEO) | -50 V |
|---|---|
| Input voltage range | -40 V to +10 V |
| Output current (low) | -30 mA |
| Maximum collector current | -100 mA |
| Power dissipation (DTA044EUB) | 200 mW |
| Junction temperature (Tj) | 150 °C |
| Built‑in bias resistor (Ry) | 47 kΩ |
The built‑in bias resistor value is 47 kΩ.
The maximum collector current is –100 mA.
The DTA044EUB is offered in a TL‑180 package with a reel size of 3,000 units.
