DTA113ZE/DTA113ZUA/DTA113ZKA/DTA113ZSA is a PNP digital transistor with integrated base resistors. It has an external input pin and is suitable for a variety of switching circuits.
The DTA113 series digital transistors integrate built‑in bias resistors, allowing inverter circuits without external resistors and simplifying circuit design. The thin‑film resistors reduce parasitic effects and enable positive biasing of the input.

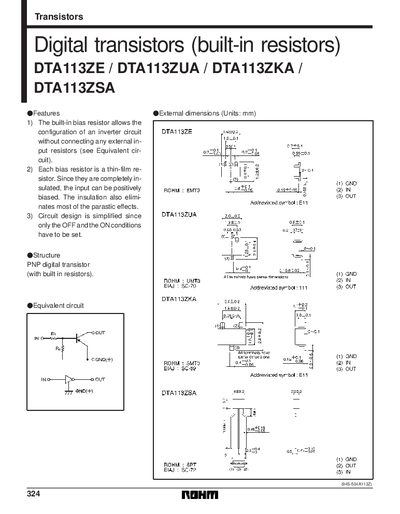

The document lists absolute maximum ratings, detailed electrical characteristics such as supply voltage, input/output voltage and current, DC current gain, and transition frequency, as well as packaging options and dimensions for the various part numbers (ZE, ZUA, ZKA, ZSA).
| Supply voltage (VEO) | -50 V |
|---|---|
| Input voltage (VIN) | -10~+5 V |
| Output current | 0‑109 mA |
| Power dissipation (Pd) | 150‑300 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature (Tstg) | -55~+150 °C |
| Transition frequency (ft) | 250 MHz |
| Package types | EMTS, UMT3, SMT3, SPT |
The maximum supply voltage rating is –50 V.
The devices are offered in EMTS, UMT3, SMT3, and SPT packages.
The transition frequency is specified as 250 MHz.
The storage temperature range is –55 °C to +150 °C.
