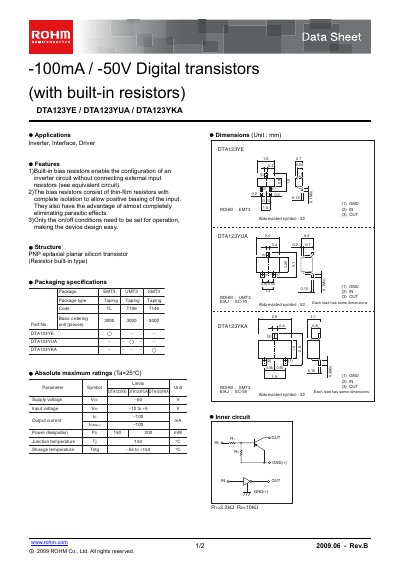

The DTA123YUA is a -100 mA / -50 V digital transistor featuring built‑in thin‑film bias resistors, allowing inverter or driver circuits without external resistors. It is intended for use in general‑purpose electronic equipment such as audio‑visual, office‑automation, and communication devices.
Key specifications include a supply voltage of –50 V, input voltage range of –12 V to 45 V, maximum output current of 100 mA, power dissipation up to 200 mW, and a junction temperature rating of 150 °C. The device is supplied in an SC‑70 package and is not designed for radiation‑tolerant applications.
| Supply voltage (Vcc) | -50 V |
|---|---|
| Input voltage (Vin) | -12 V to 45 V |
| Power dissipation (Po) | 150 mW – 200 mW |
| Maximum junction temperature (Tj) | 150 °C |
| Storage temperature (Tstg) | -55 °C to +150 °C |
The maximum supply voltage is –50 V.
It supports an input voltage from –12 V to 45 V.
No, the products are not designed to be radiation tolerant.
