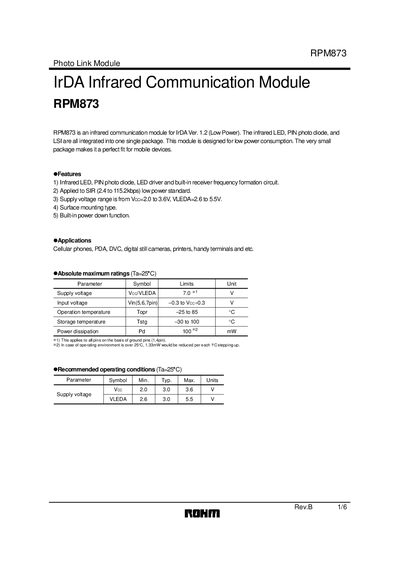

RPM873 is an infrared communication module for IrDA Ver. 1.2 (Low Power), featuring low power consumption and a small package. It integrates an infrared LED, PIN photo diode, and LSI, making it suitable for mobile devices.
The RPM873 module combines an infrared LED, PIN photodiode, LED driver and a receiver circuit in a single surface‑mount package. It supports the IrDA SIR low‑power standard (2.4 kbps to 115.2 kbps) and is intended for mobile devices such as cellular phones, PDAs, digital cameras and printers.
The datasheet provides absolute maximum ratings, recommended operating conditions, pin descriptions, electrical and optical characteristics, timing diagrams, and mechanical dimensions. Design notes advise layout practices to minimise noise and feedback, and include power‑down behavior and eye‑safety classification.
| Supply voltage (Vec) | 2.0 V – 3.6 V |
|---|---|
| LED supply voltage (VLEDA) | 2.6 V – 5.5 V |
| Operating temperature | -25 °C – 85 °C |
| Transmission rate | 2.4 kbps – 115.2 kbps |
| Peak wavelength | 850 nm – 900 nm |
| LED anode current (ILEDA) | 30.5 mA (max) |
The supply voltage Vec ranges from 2.0 V to 3.6 V, and the LED supply voltage VLEDA ranges from 2.6 V to 5.5 V.
The peak wavelength is specified between 850 nm and 900 nm.
The maximum LED anode current is 30.5 mA.
It supports IrDA SIR rates from 2.4 kbps up to 115.2 kbps.
