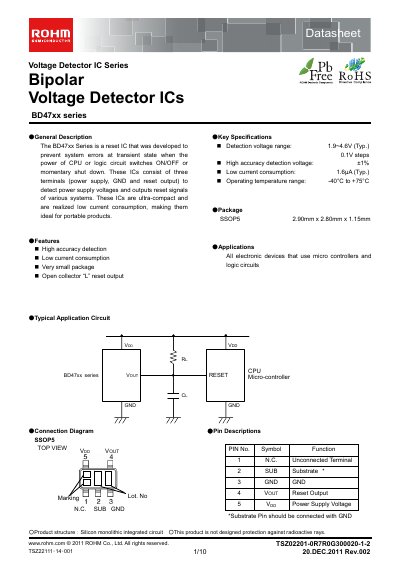

The BD47xx series is a reset IC that was developed to prevent system errors at transient state when the power of CPU or logic circuit switches ON/OFF or momentary shut down.
The BD47xx series from ROHM is a reset IC designed to prevent system errors during power‑on/off transients. It provides a single reset output and operates with ultra‑low current consumption, making it suitable for portable electronic devices.
The device is offered in a compact SSOP5 package (2.90 mm × 2.80 mm × 1.15 mm) and includes specifications such as a detection voltage range of 1.9‑4.6 V, typical current consumption of 1.6 µA, and an operating temperature range of –40 °C to +75 °C.
| Detection voltage range | 1.9 ~ 4.6 V (Typ.) |
|---|---|
| Voltage step | 0.1 V |
| Typical current consumption | 1.6 µA (Typ.) |
| Operating temperature range | -40 °C to +75 °C |
| Supply voltage range | -0.3 V to +10 V |
| Output voltage range | -0.3 V to +10 V |
The BD47xx series detects voltages from 1.9 V to 4.6 V (typical).
It consumes about 1.6 µA typical current.
The devices operate from –40 °C up to +75 °C.
