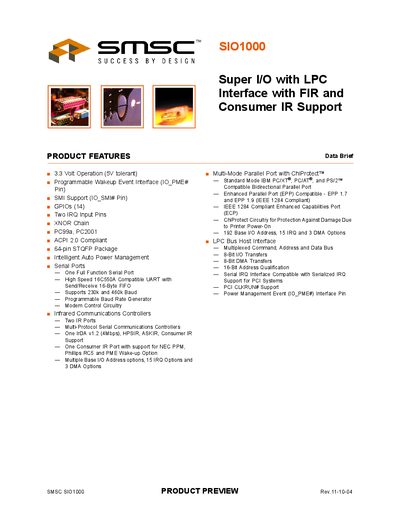

SMSC SIO1000 is a super I/O product with LPC interface, FIR and consumer IR support.
The SIO1000 Super I/O controller provides a 64‑pin STQFP package that integrates a full‑function serial port, a 16C550A‑compatible UART with 16‑byte FIFO, and a multi‑mode parallel port supporting IBM PC/XT, PC/AT, PS/2, EPP and ECP standards. It includes 14 GPIO pins, two IRQ input pins, and configurable I/O address, IRQ and DMA options.
The device also features two infrared ports: one IrDA v1.2 (4 Mbps) with HPSIR and ASKIR support, and a consumer‑IR port compatible with NEC PPM and Phillips RC5. Power management functions include ACPI 2.0 compliance and intelligent auto‑power management, while the LPC bus host interface offers 8‑bit I/O and DMA transfers and PCI CLKRUN# support.
| Operating Voltage | 3.3 V (5 V tolerant) |
|---|---|
| Package Type | 64‑pin STQFP |
| UART Compatibility | 16C550A compatible with 16‑byte FIFO |
| Supported Baud Rates | 230 k and 460 k Baud |
| GPIO Count | 14 pins |
| IRQ Inputs | Two IRQ input pins |
| Infrared Ports | Two IR ports (IrDA v1.2, HPSIR, ASKIR, Consumer IR) |
| Parallel Port Modes | Standard, EPP 1.7/1.9, ECP (IEEE 1284 compliant) |
| ACPI Compliance | ACPI 2.0 |
| LPC Bus Interface | 8‑bit I/O and DMA transfers, 16‑bit address qualification |
The SIO1000 operates at 3.3 V and is tolerant up to 5 V.
The controller provides 14 GPIO pins.
It supports IrDA v1.2 (4 Mbps), HPSIR, ASKIR, NEC PPM and Phillips RC5 consumer‑IR formats.
The device is offered in a 64‑pin STQFP package.
