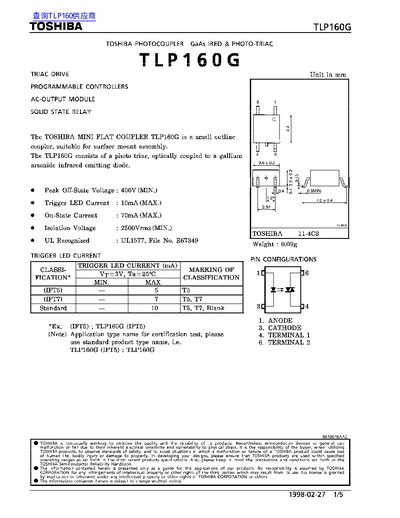

The TLP160G is a miniature solid‑state relay (photocoupler) that combines a gallium arsenide infrared emitting diode with a photo‑triac. It is designed for surface‑mount assembly and offers high isolation and fast switching for AC‑output modules and programmable controllers.
The document lists maximum ratings, individual and coupled electrical characteristics, recommended operating conditions, and normalized performance curves, allowing designers to evaluate the device for a wide range of temperature and voltage environments.
| Peak Off‑State Voltage | 400 V (MIN) |
|---|---|
| Isolation Voltage | 2500 Vrms (MIN) |
| On‑State RMS Current | 70 mA |
| Storage Temperature Range | -55 °C to 125 °C |
| Operating Temperature Range | -40 °C to 100 °C |
| Supply Voltage | 120 Vac |
The device is rated for a minimum peak off‑state voltage of 400 V.
It provides at least 2500 Vrms isolation voltage.
The recommended supply voltage is 120 Vac.
It operates from –40 °C to 100 °C and can be stored from –55 °C to 125 °C.
