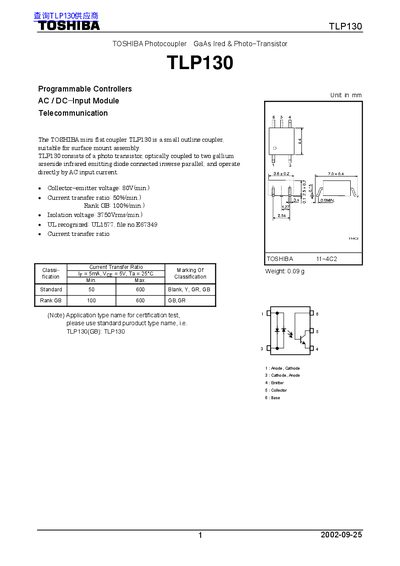

tlp130 is a photocoupler produced by toshiba. its features are small outline, suitable for surface mounting, and consists of a phototransistor and two gallium arsenide infrared emitting diodes connected inverse parallel.
The TLP130 is a miniature optocoupler that combines a gallium arsenide infrared LED with a photo‑transistor, designed for surface‑mount assembly. It is suitable for a wide range of general electronics applications such as computers, office equipment, and industrial robotics.
The document lists maximum ratings, recommended operating conditions, electrical characteristics, isolation and switching performance, and safety restrictions. Key parameters include a collector‑emitter voltage of 80 V, isolation voltage of 3750 Vrms, and a supply voltage range of 5‑48 V.
| Collector‑emitter voltage (VCEO) | 80 V (min) |
|---|---|
| Power dissipation (Po) | 150 mW |
| Junction temperature (Tj) | 125 °C |
| Supply voltage (VEC) | 5 V to 48 V |
The recommended supply voltage is between 5 V and 48 V.
