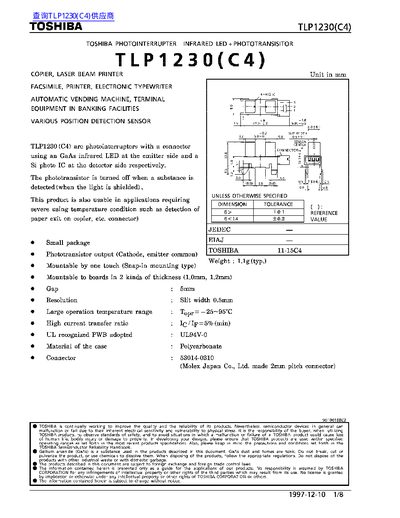

The TLP1230(C4) is a GaAs infrared LED photointerrupter with a silicon phototransistor detector, designed for applications such as copiers, printers, facsimiles, vending machines and banking equipment. It offers a wide operating temperature range and a snap‑in mounting style.
This datasheet lists maximum ratings, opto‑electrical characteristics, mechanical dimensions, connector information, switching behavior and handling precautions, enabling designers to integrate the device safely and reliably into their systems.
| Forward Voltage (typ) | 1.15 V |
|---|---|
| Forward Current (max) | 50 mA |
| Reverse Voltage | 5 V |
| Collector‑Emitter Voltage | 35 V |
| Operating Temperature Range | -25 °C to 95 °C |
| Weight (typical) | 1.1 g |
| Slit width | 0.5 mm |
| Connector part number | 58014-0310 |
| Case material | Polycarbonate |
The maximum forward current is 50 mA.
It operates from –25 °C up to 95 °C.
The recommended connector is part number 58014-0310, a 2 mm pitch Molex connector.
Mount the device by holding the main body, insert the connector at normal temperature, and preferably insert from the sheet‑metal side.
