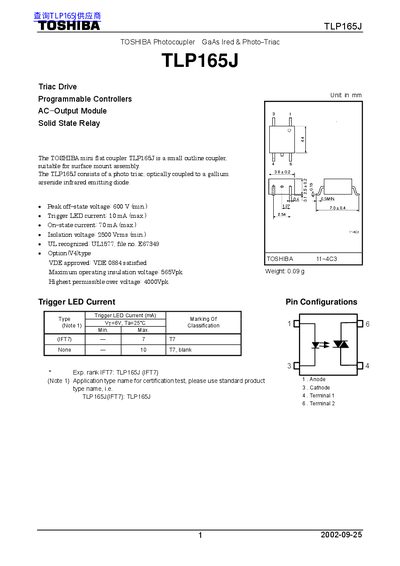

TLP165J is a TOSHIBA mini flat coupler suitable for surface mount assembly. It consists of a photo triac optically coupled to a gallium arsenide infrared emitting diode. It features a peak off-state voltage of 600V (min.), a trigger LED current of 10mA (max.), an on-state current of 70mA (max.), an isolation voltage of 2500Vrms (min.), and UL1577 recognition (file no. E67349). It is also VDE approved. The trigger LED current is IFT7. The document provides the pin configurations and the minimum and maximum values of the trigger LED current. The weight of the product is 0.09g.
The TLP165J is a miniature surface‑mount photocoupler that combines a gallium‑arsenide infrared LED with a photo‑triac. It is designed for AC‑output modules and solid‑state relay applications, offering isolation and control in compact packages.
The document lists maximum ratings, electrical characteristics, and recommended operating conditions, including voltage, current, temperature ranges, and safety restrictions for reliable integration in electronic equipment.
| Peak off‑state voltage | 600 V (min) |
|---|---|
| On‑state current | 70 mA (max) |
| Isolation voltage | 2500 Vrms (min) |
| Forward current (IF) | 50 mA |
| Supply voltage | 240 Vac (max) |
| Weight | 0.09 g |
The peak off‑state voltage is 600 V (minimum).
The isolation voltage is rated at 2500 Vrms (minimum).
The device can be powered up to 240 Vac.
