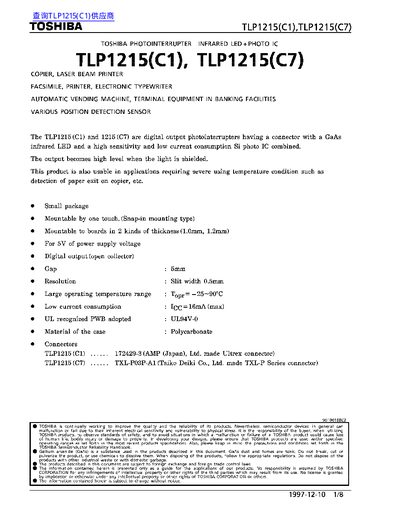

The TLP1215(C1) and TLP1215(C7) are digital output photointerrupters designed for applications such as copiers, laser printers, facsimiles, and vending machines. They provide a high‑level output when the infrared beam is blocked and are suitable for harsh temperature conditions.
Key specifications include a 5 V supply voltage, 16 mA low‑level output current, slit width of 0.6 mm, and an operating temperature range of –25 °C to 90 °C. The devices use a snap‑in mounting style and can be mounted on boards of 1.0 mm or 1.2 mm thickness. Recommended connectors are the Ultrex (C1) and TXL‑P series (C7).
| Supply Voltage (recommended) | 4.5 V – 5.5 V |
|---|---|
| Operating Temperature Range | -25 °C to 90 °C |
| Low Level Output Current | 16 mA |
| Slit Width | 0.6 mm |
| Gap | 5 mm |
| Weight (typical) | 1.1 g |
| Rise Time | 8 µs |
| Fall Time | 0.08 µs |
It provides a digital output with an open‑collector configuration.
The recommended supply voltage is between 4.5 V and 5.5 V.
The device uses a snap‑in mounting type and can be mounted on boards of 1.0 mm or 1.2 mm thickness.
The device operates from –25 °C up to 90 °C.
