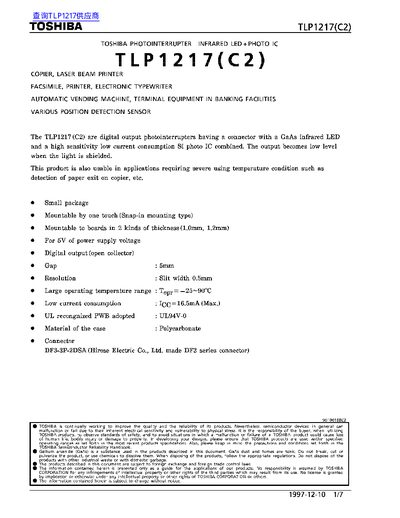

The TLP1217(C2) is a digital‑output photointerrupter with a GaAs infrared LED and a low‑current Si photo‑IC. It is used in copiers, laser printers, facsimile machines, vending machines, banking terminals and other position‑detection applications. The device outputs a low‑level signal when the light path is blocked and operates over a wide temperature range.
This manual includes outline drawings, pin connections, recommended operating conditions, opto‑electrical characteristics, mounting guidelines, connector information and safety precautions. Key specifications such as supply voltage, output current, temperature range and optical parameters are listed for designers.
| Output Voltage | 5–17 V |
|---|---|
| Operating Temperature | -25 to 90 °C |
| Weight (typical) | 1.1 g |
It operates from –25 °C up to 90 °C.
It uses a Hirose DF3‑3P‑2DSA series connector.
