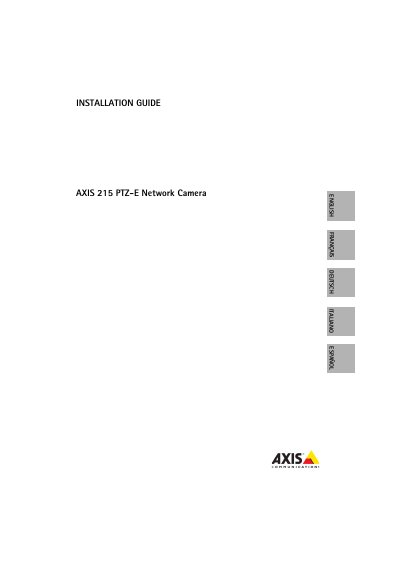

This English document is the installation guide for AXIS 215 PTZ-E network camera, which introduces the installation process and precautions.
This guide covers the Axis 215 PTZ‑E network camera, an outdoor‑rated PTZ camera supplied in a weather‑proof housing. It explains safety precautions, unpacking, and preparation before installation.
Key sections include mounting options (wall or ceiling), cable connections, IP address configuration via DHCP or static methods, password setup, and a full technical specifications table for the camera’s optics, sensor, video formats and network security features.
| Image sensor | 1/4” interlaced CCD |
|---|---|
| Lens | 3.8 – 46mm, F1.6 – F2.7 |
| Minimum illumination (color) | 1 lux at 30IRE, F1.6 |
| Shutter time (NTSC) | 1/50000 – 4/3 s |
| Preset positions | 20 |
| Optical / digital zoom | 12x optical, 4x digital |
| Video compression | MPEG‑4 Part 2 (ISO/IEC 14496-2) Motion JPEG |
| Supported resolutions (NTSC) | 704x480 to 176x120 |
| Network security features | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X |
The camera can be installed either as a wall mount using a drill template and four screws, or as a ceiling mount with the supplied NPT adaptor and four large screws.
If a DHCP server is present the camera receives an address automatically; otherwise you can set a static IP (default 192.168.0.90) using the AXIS IP Utility or AXIS Camera Management.
All electrical connections must be performed by an authorized electrician, power should be disconnected before work, and only original spare parts should be used.
When you first access the camera, the ‘Configure Root Password’ dialog appears; enter a password and the username “root” to set the administrator password.
