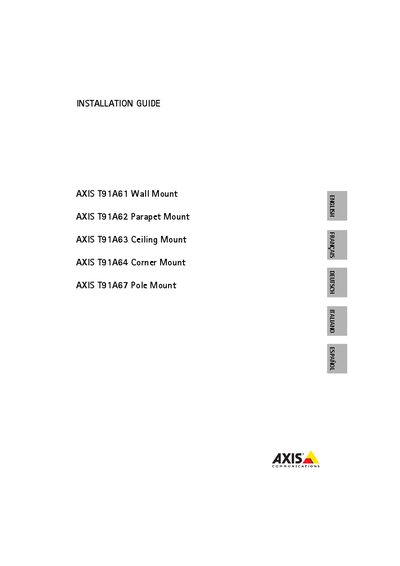

This document includes instructions for installing the AXIS T91A Mounting Accessories. It provides information on the installation methods and usage considerations for the products.
This guide provides step‑by‑step instructions for installing the AXIS T91A61‑T91A67 mounting accessories used with Axis network cameras. It includes hardware overviews, package contents, and safety notes.
The document details the installation procedures for each mount type (wall, parapet, ceiling, corner, pole), required hardware (brackets, screws, steel straps), and references to the camera’s own Installation Guide for final camera attachment.
| Maximum weight for Parapet Mount | 15 kg (33 lbs) |
|---|---|
| Maximum distance from roof edge for Parapet Mount | 80 mm (3.2 in.) |
| Screw type for mounting | Torx T30 |
| Corner Mount bracket screws | 4 M8×22 screws |
| Pole Mount steel straps (tool not supplied) | Steel straps, tool not supplied |
The bracket should be installed no more than 80 mm (3.2 in.) from the edge of the roof.
No special tool is supplied; the steel straps are provided but the strap‑tightening tool is not included.
