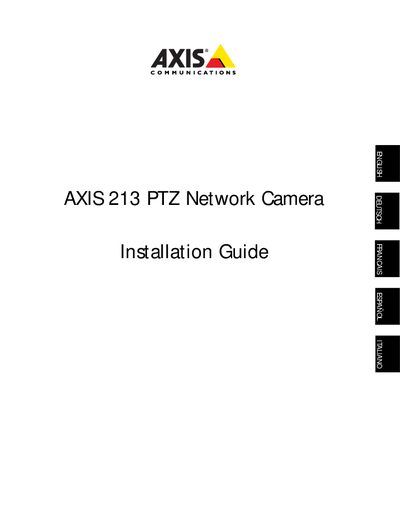

This document describes the installation of AXIS 213 PTZ Network Camera.
The Installation Guide walks you through preparing the Axis 213 PTZ Network Camera for indoor use (or outdoor use with the appropriate housing), mounting the supplied ceiling bracket, and connecting power and network cables. It also outlines safety and cleaning recommendations before installation.
After hardware installation, the guide details several methods for assigning an IP address—using the AXIS IP Utility, UPnP, ARP/Ping, or manual entry—and explains how to set the root password, enable optional AMC software, and configure the AXIS Internet Dynamic DNS Service.
| Default IP address | 192.168.0.90 |
|---|---|
| Indoor use (outdoor with housing) | Designed for indoor use; outdoor use requires housing accessories |
| Mounting hardware | Ceiling bracket supplied |
| UPnP™ enabled by default | Yes |
You can assign an IP address using the AXIS IP Utility, UPnP, ARP/Ping commands, or by manually entering the address and serial number in the camera’s web interface.
The default administrator username is root and cannot be changed.
