The Accuride 2132 and 3832-B are medium‑duty drawer runners designed for a range of cabinet applications. They offer 75% extension for the 2132 model and 100%+ extension for the 3832‑B model, with load ratings of 35 kg and 45 kg respectively. Optional clip‑on bottom mount brackets are available for lengths 350 mm‑700 mm (3832‑B) and 400 mm‑700 mm (2132).

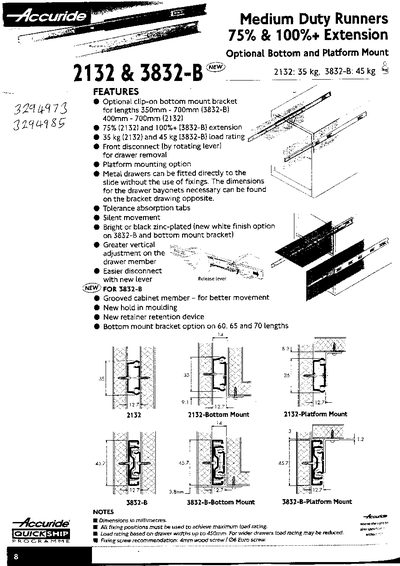

Both models can be finished in bright or black zinc‑plated steel, with a white‑finish option for the 3832‑B and its bottom mount bracket. The runners include front disconnect levers for easy drawer removal, tolerance‑absorption tabs, silent movement, and greater vertical adjustment on the drawer member. Detailed dimensions and mounting brackets are provided in the accompanying drawings.
| Load rating (2132) | 35 kg |
|---|---|
| Load rating (3832‑B) | 45 kg |
| Extension (2132) | 75% |
| Extension (3832‑B) | 100%+ |
| Bottom mount bracket length (3832‑B) | 350 mm‑700 mm |
| Finish options | Bright or black zinc‑plated; white finish for 3832‑B |
The 2132 runner is rated for a load of 35 kg.
The 3832‑B can use an optional clip‑on bottom mount bracket for lengths 350 mm‑700 mm, as well as a platform mount option.
The 3832‑B offers a 100%+ extension.
Both models are available in bright or black zinc‑plated finishes, with a white‑finish option for the 3832‑B and its bottom mount bracket.
