Accuride reserves the right to alter specifications without notice. The products have self-closing options, a load rating of up to 50kg, 100% extension, and a slide thickness of 12.7mm. Optional clip-on brackets are available for bottom and platform mounting. The slides feature front disconnect, hold-in, and cam drawer adjustment.

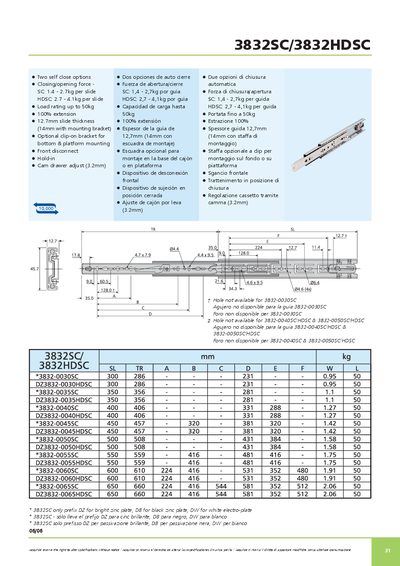

The 3832SC and 3832HDSC are self‑closing drawer slide guides from Accuride. This short handbook lists the main technical data and optional accessories for the two slide variants.
Key data include closing/opening force ranges, maximum load capacity, slide thickness, and available mounting brackets, as well as adjustment features for precise positioning.
| Closing force (SC) | 1.4 – 2.7 kg per slide |
|---|---|
| Closing force (HDSC) | 2.7 – 4.1 kg per slide |
| Load rating | up to 50 kg |
| Slide thickness | 12.7 mm (14 mm with mounting bracket) |
| Extension length | 10096 |
| Optional clip‑on bracket | available for bottom & platform mounting |
| Front disconnect | provided |
| Hold‑in feature | provided |
| Cam drawer adjustment | 3.2 mm |
The SC version requires 1.4 – 2.7 kg of force per slide to close or open.
Both the SC and HDSC slides are rated for up to 50 kg of load.
The guide thickness is 12.7 mm, or 14 mm when the mounting bracket is used.
Yes, a clip‑on bracket can be added for bottom or platform mounting.
