This document is the instruction manual for the 3832 guide rail. The guide rail has a rated load of 50kg and can be extended 100%. The guide rail is 12.7mm thick and has an optional mounting bracket for mounting on the bottom or platform. It has a front disconnect device, a hold-in device in the closed position, and a cam drawer adjustment device (3.2mm).

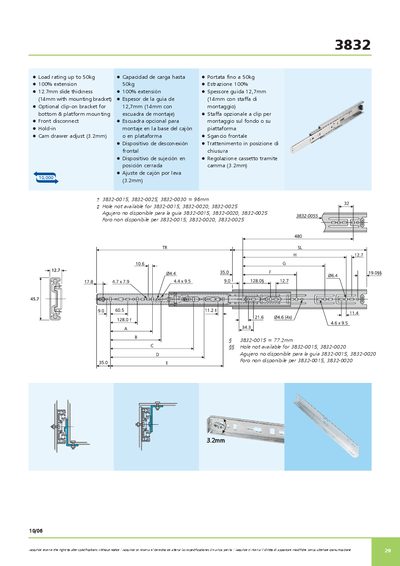

This leaflet provides the key specifications for the Accuride 3832 drawer slide, a heavy‑duty slide used in cabinets and furniture. It lists load capacity, dimensions, optional accessories, and part numbers.
The document shows a load rating of up to 50 kg, a slide thickness of 12.7 mm (14 mm with the mounting bracket), a 10096 mm extension, and a cam‑drawer adjustment travel of 3.2 mm. Optional clip‑on brackets are available for bottom or platform mounting, and front disconnect and hold‑in devices are included.
| Load rating | up to 50 kg |
|---|---|
| Slide thickness | 12.7 mm (14 mm with mounting bracket) |
| Extension | 10096 mm |
| Cam drawer adjustment travel | 3.2 mm |
| Optional clip‑on bracket | available for bottom & platform mounting |
| Front disconnect | included |
| Hold‑in device | included |
The Accuride 3832 is rated for a load of up to 50 kg.
The slide thickness is 12.7 mm, or 14 mm when the mounting bracket is installed.
Yes, an optional clip‑on bracket can be used for bottom or platform mounting.
The cam drawer adjustment provides a travel of 3.2 mm.
