The product has a maximum load capacity of 34kg, can be extended 100%, slide thickness 12.7mm, height only 26.3mm, with a safety device.

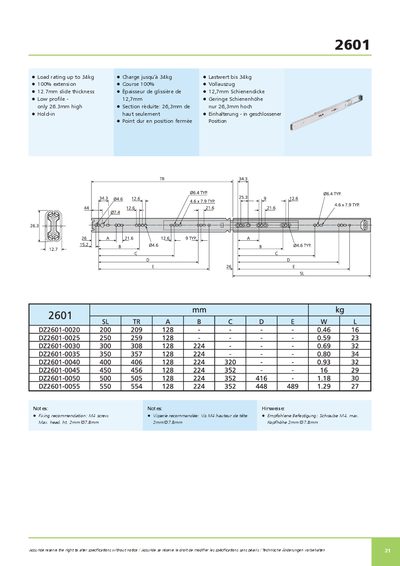

The Accuride 2601 handbook provides key specifications for the drawer slide, including load capacity, slide thickness, and low‑profile dimensions. It also lists recommended fixing hardware and extension capabilities.
A concise table lists model variations with corresponding load limits and dimensions, and the document notes that specifications may change without notice.
| Load rating | up to 34 kg |
|---|---|
| Extension | 100 % |
| Slide thickness | 12.7 mm |
| Low profile height | 26.3 mm |
The slide is rated for a maximum load of up to 34 kg.
The slide thickness is 12.7 mm.
