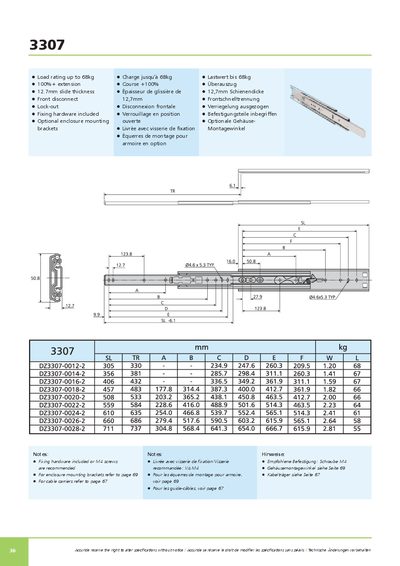

This document is the product manual of 3307 guide rail, it introduces the characteristics of guide rail, including load capacity, extension length, slide thickness, front disconnect, lock-out etc.
The Accuride 3307 is a heavy‑duty drawer slide rated for loads up to 68 kg and offering a full‑extension of 100 %+. The slide thickness is 12.7 mm and it includes front disconnect and lock‑out features for safety.
The leaflet lists the fixing hardware that comes with the slide, optional enclosure mounting brackets, and detailed dimension tables for various lengths. Installation references are provided for cable carriers and mounting brackets.
| Load rating | 68 kg |
|---|---|
| Slide thickness | 12.7 mm |
| Extension | 100 %+ |
It is rated for up to 68 kg.
The slide thickness is 12.7 mm.
Yes, fixing hardware is included.
Yes, optional enclosure mounting brackets are listed.
