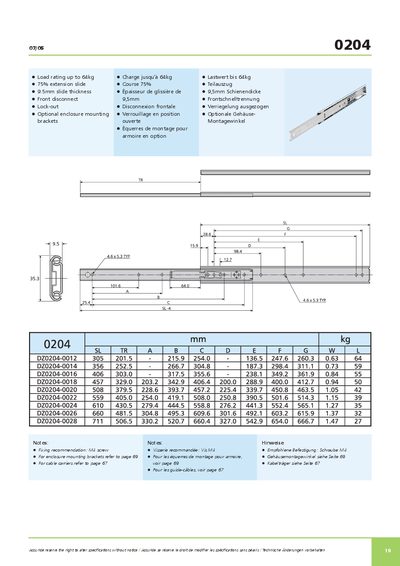

Accuride reserves the right to alter specifications without notice. The product has a load rating of up to 64kg, 75% extension slide, 9.5mm slide thickness, front disconnect, lock-out feature, and optional enclosure mounting brackets.
The Accuride 0204 slide is rated for a maximum load of 64 kg and provides a 75 % extension. The slide thickness is 9.5 mm and it includes a front disconnect and lock‑out feature, with optional enclosure mounting brackets available.
Dimensions are listed as 4.6 × 5.3 TYR and the recommended fixing hardware is an M4 screw. Additional mounting‑bracket and cable‑carrier details are referenced on pages 69 and 67 of the full documentation.
| Load rating | up to 64 kg |
|---|---|
| Extension | 75 % |
| Slide thickness | 9.5 mm |
| Front disconnect | Yes |
| Lock‑out | Yes |
| Optional enclosure mounting brackets | Available |
| Fixing recommendation | M4 screw |
| Dimensions | 4.6 × 5.3 TYR |
The slide can support up to 64 kg.
It provides a 75 % extension.
The slide thickness is 9.5 mm.
An M4 screw is recommended.
