The SLD327YT E95Z13B01-PS is a high power laser diode product produced by Sony. It has the characteristics of high optical power output, high optical power density, etc., and is suitable for solid state laser excitation, medical use, material processing and other fields.
The SLD327YT is a 3 W high‑power laser diode with a compatible package that allows independent thermal and electric design. It is suitable for solid‑state laser excitation, medical use, material processing, and measurement applications.

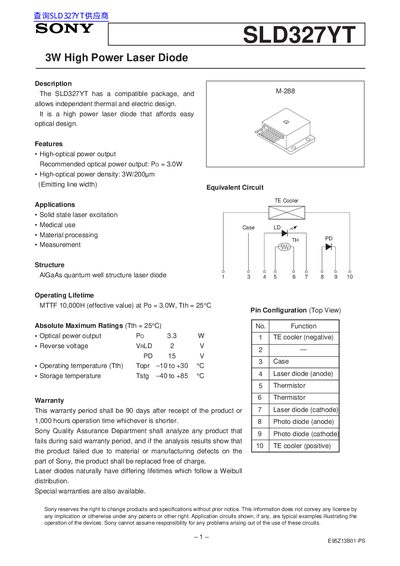

The document lists key specifications such as optical power output, wavelength, temperature ranges, and package dimensions, and includes safety precautions, handling guidelines, and warranty information.
| Recommended optical power output | 3.0 W |
|---|---|
| Optical power density | 3 W/200 µm |
| Operating temperature range | –10 °C to +30 °C |
| Storage temperature range | –40 °C to +85 °C |
| Reverse voltage (V_RLD) | 2 V |
| Maximum optical output | 3.3 W |
| Typical wavelength | 795 nm ±5 |
The recommended optical power output is 3.0 W.
It operates between –10 °C and +30 °C.
Safety goggles that block infrared rays, IR scopes, IR cameras, and fluorescent plates should be used.
The warranty is 90 days after receipt or 1,000 hours of operation, whichever is shorter.
