This document introduces Sony's SLD6163RL dual wavelength laser diode, designed for DVD, CD, and CD-R/RW playback. The product features dual wavelengths of 650 nm/780 nm, low noise operation, AlGaInP quantum well structure laser diode, PIN photo diode for optical power output monitor, etc.
The SLD6163RL is a dual‑wavelength laser diode designed for DVD, CD and CD‑R/RW playback. It integrates a quantum‑well AlGaInP structure and includes a PIN photodiode for optical power monitoring.

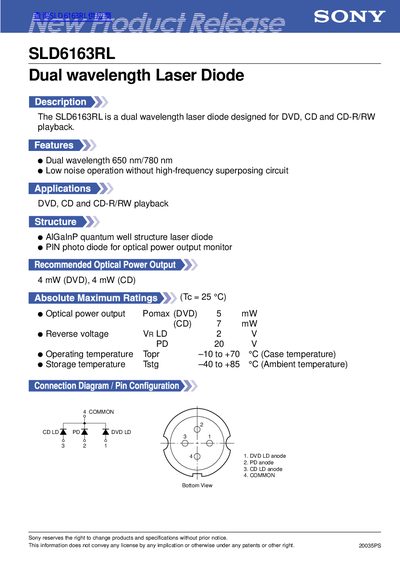

Key specifications include 650 nm/780 nm wavelengths, low‑noise operation, recommended optical output of 4 mW (DVD and CD), maximum output of 5 mW (DVD) and 7 mW (CD), reverse voltage of 2 V, operating temperature from –10 °C to +70 °C, and storage temperature from –40 °C to +85 °C. The pin configuration and connection diagram are also provided.
| Wavelengths | 650 nm / 780 nm |
|---|---|
| Recommended Optical Power Output (DVD) | 4 mW |
| Maximum Optical Power Output (DVD) | 5 mW |
| Reverse Voltage (Laser Diode) | 2 V |
| Reverse Voltage (Photodiode) | 20 V |
| Operating Temperature (Case) | -10 °C to +70 °C |
| Storage Temperature (Ambient) | -40 °C to +85 °C |
It emits dual wavelengths of 650 nm and 780 nm.
The recommended optical power output is 4 mW for both DVD and CD.
The laser diode reverse voltage is 2 V, and the photodiode reverse voltage is 20 V.
The device operates from –10 °C to +70 °C (case) and can be stored from –40 °C to +85 °C (ambient).
