The SLD233VL is a high power index-guided AlGaAs laser diode with low noise and low power consumption. It is suitable for MiniDisc recording/playback.
The SLD233VL is a high‑power index‑guided AlGaAs laser diode featuring low noise and low power consumption. It is intended for MiniDisc recording/playback pickups and includes an AlGaAs quantum‑well laser diode paired with a PIN photodiode for optical power monitoring.

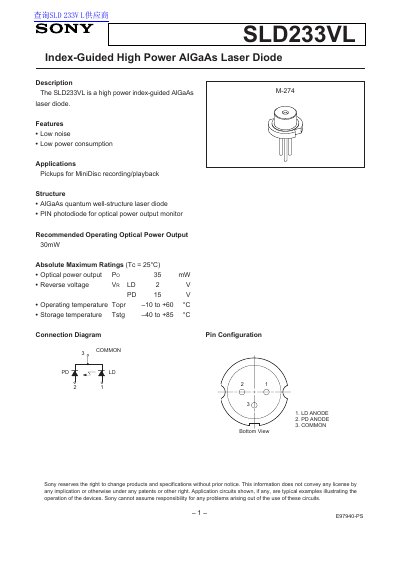

The document provides detailed optical and electrical parameters, absolute maximum ratings, package dimensions, and pin configuration, enabling designers to integrate the device into optical circuits safely and effectively. This manual is written in Chinese.
| Recommended Optical Power Output | 30 mW |
|---|---|
| Typical Optical Power Output | 35 mW |
| Reverse Voltage (LD) | 2 V |
| Operating Temperature Range | -10 °C to +60 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Package Weight | 0.3 g |
The recommended optical power output is 30 mW.
The laser diode (LD) can tolerate up to 2 V reverse voltage, and the photodiode (PD) up to 15 V.
It operates from –10 °C to +60 °C, with storage allowed from –40 °C to +85 °C.
The package weight is approximately 0.3 g.
