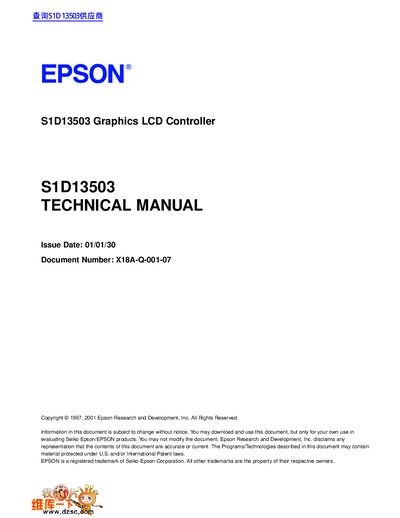

S1D13503 is a graphics LCD controller from Epson Research and Development, Inc.
This technical manual introduces the Epson S1D13503 graphics LCD controller, describing its architecture, features, and supported interfaces. It includes a data sheet, hardware functional specification, programmer's reference, and a set of software utilities for display, diagnostics, and power management.
The document also covers evaluation board information, application notes on power consumption and bus interfaces, and a detailed comparison with the earlier S1D13502 controller. Contact information for Epson regional support offices is provided throughout.
| Maximum resolution | 1024 × 1024 |
|---|---|
| Maximum colors | 256 simultaneous colors (out of 4096 possible) |
| Gray shades | 16 gray shades |
| Operating voltage | 2.7 V to 5.5 V |
| SRAM display buffer size | up to 128 KB |
| CPU interface | 16‑bit 16 MHz MC68xxx MPU interface |
| Package options | QFP5‑100‑S2 (FOOA) and QFP15‑100‑STD (F01A) |
It supports resolutions up to 1024 × 1024 pixels.
It can display up to 256 simultaneous colors out of a possible 4096.
The controller operates from 2.7 V to 5.5 V.
It is offered in QFP5‑100‑S2 (FOOA) and QFP15‑100‑STD (F01A) packages.
