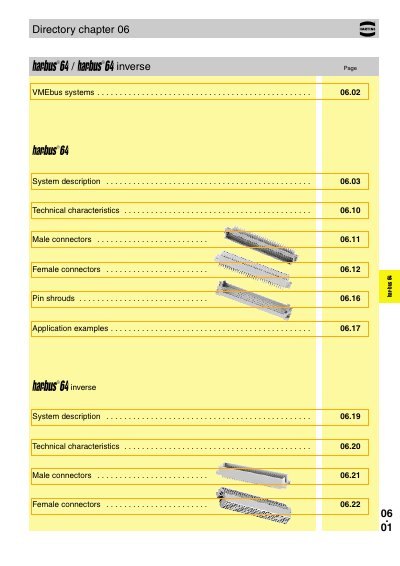

This is a pdf document about VMEbus systems. It introduces the overview, technical characteristics, connectors and application examples of VMEbus systems.
The har‑bus 64 series is a 5‑row, 160‑pin Eurocard connector designed for VMEbus systems. It provides backward compatibility with legacy 3‑row, 96‑pin connectors, allowing existing boards to be used without redesign and supporting live insertion of cards.
Technical characteristics include a contact spacing of 2.54 mm, a working current of 1 A at 70 °C, a test voltage of 1 kV rms, and insertion/withdrawal forces up to 180 N. The connectors are made from liquid crystal polymer (LCP) with a UL 94‑V0 flammability rating and feature optional switching elements for automatic daisy‑chaining.
| Number of contacts | 160 |
|---|---|
| Contact spacing | 2.54 mm |
| Working current | 1 A at 70 °C |
| Test voltage | 1 kV rms |
| Temperature range | -55 °C … +125 °C |
| Maximum data rate | 320 MByte/s |
| Contact resistance (inverse) | ≤ 20 mΩ |
It supports data transfer rates up to 320 MByte/s.
The connector has 160 pins.
